Project BHB ESTW 2 Eindhoven



Customer NS Eindhoven
City Eindhoven / Netherlands
Supplier BHB-Vertrieb

Planning

Commissioning

Hand over

11/2004

1/2005

3/2005










Projectdescription:

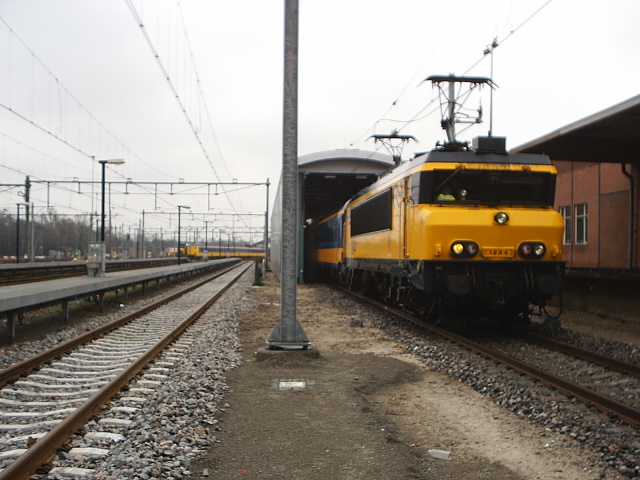

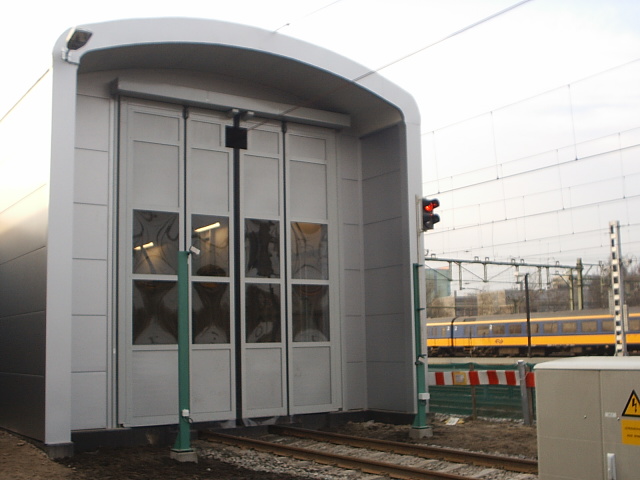

This plant is used to wash trains from the Netherland Railways. The plant is prepared to wash the trains during drive-trough the plant.

The wash can be done by alcaline or acid detergent. The washtime is appr. 30min, depending from the train contour



This parts are washed

bulletFront
bulletSide
bulletSpace beetween the wagoons
bulletRear



The plant is prepared with temperature tunnels. So it is possible to wash the trains during wintertimes with an outside-temperature down to -5°





The project BHB ESTW2 Eindhoven contains

bulletDevelopment from controlling software for tram washplant
bulletfully PC based control-,paramter-,visualization-environment
bulletCommissioning





Operating

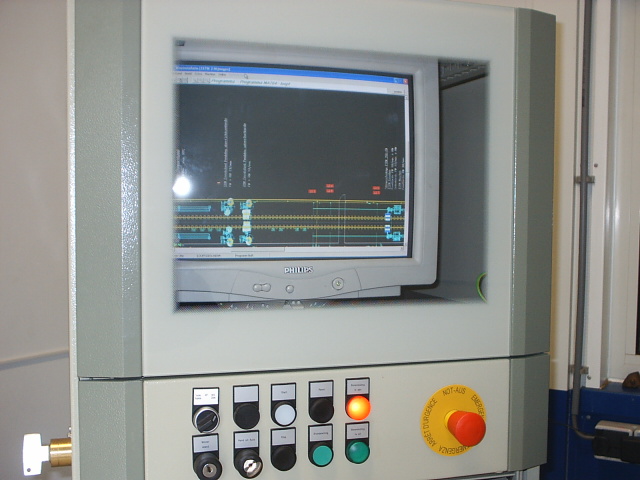

The maintenance workers operate the plant completly via the PC



The PC Software WA-System contains:

bulletVisualizationsystem with manual functions and faultmessages
bulletPC based data recorder
bulletParametersystem to adjust traindata









more information about WA-System Software









Controlling:





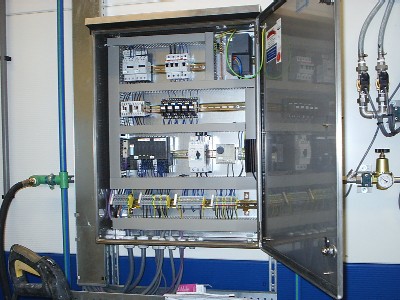

To control the plant a Simatic S7 400 is used with a CPU 414-3 DP . The Sensor/Actors are controlled via Profibus DP. The PC communicates also via Profibus DP to the controller.





































The train drives to the entrance-panel and the train-driver starts there the program

After programstart the traindriver will be leaded trough the plant via traffic lights



There is no operater personal necessary to operate the plant
